Specification
Installation： Aerial, duct, weak electrical areas.

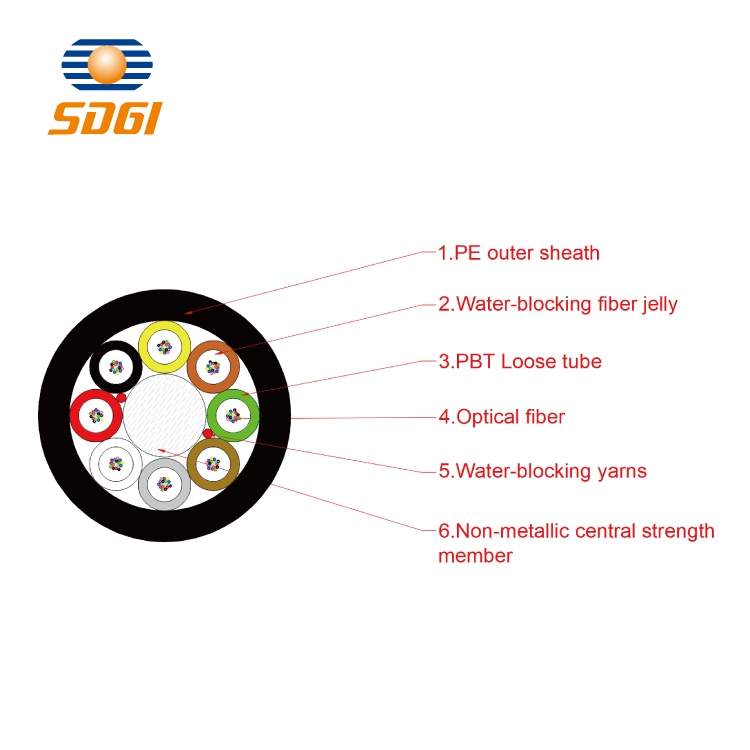

Structural features： Non- metallic strength members, maybe reinforced with peripheral strength members like glass yarns or aramid yarns, flame-retardant outer sheath.
Performance characteristics： Non-metallic optical fiber cable low smoke halogen-free flame retardant sheath, no extension of flame and no toxic gas generated when burning, excellent performance of anti-electromagnetic, thunder and lighting-proof, electrostatic prevention.
Application： Long-haul communication, interoffice communication, especially applicable for electric power systems, thunder and lightning, and electromagnetic interference stricken area, and can be used as drop cable.
Parameters
| Fiber count | Cable O.D(mm) | Cable weight(kg/km) | Minimum bending radius | Tension allowed(N) | Crush resistance | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2- 36 | 9.8 | 101 | 10times O.D | 20times O.D | 1500 | 600 | 1000 | 300 |
| 38- 72 | 10.2 | 109 | ||||||
| 74- 96 | 11.7 | 144 | ||||||
| 98- 120 | 13.2 | 177 | ||||||
| 122- 144 | 14.5 | 210 | ||||||
| 144- 216 | 14.9 | 218 | ||||||
| 218- 240 | 16.7 | 273 | ||||||
| 242- 288 | 16.7 | 273 | ||||||
