Specification
Installation： Aerial.

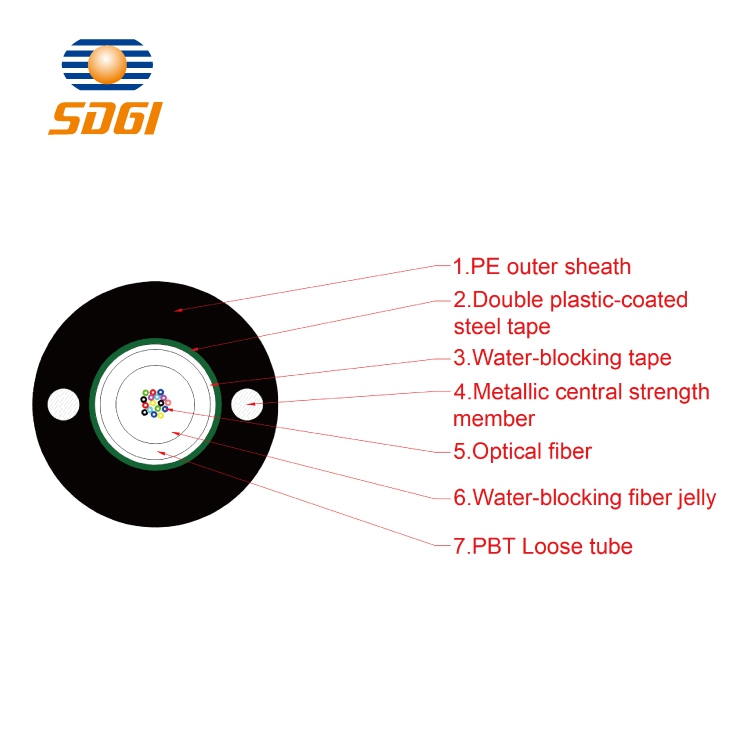

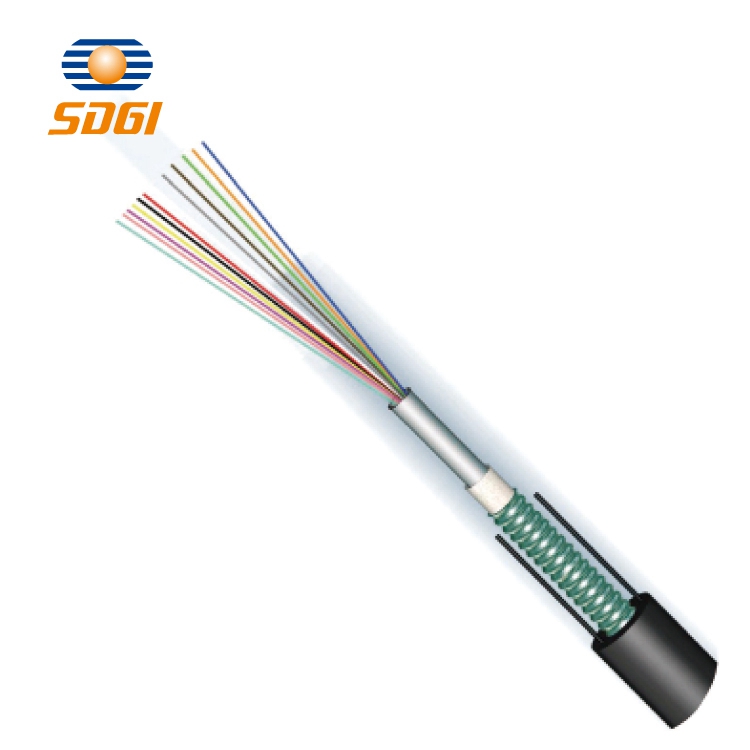

Structural features： The optical fibers are protected by a central loose tube and gathered in the center of optical fiber cable ， strength members are distributed on two sides of the sheath of the cable. A water-blocking layer is placed between steel tape and cable core. Double plastic-coated corrugated steel tape- PE laminated outer sheath, parallel steel wires / FRP as a strength member.
Performance characteristics： Excellent water-proof performance with superior water- barrier, excellent tensile strength with steel tape bonded outer sheath and non-metallic / metallic strength members, minimize the impact of crush force on fibers in the cable with a central loose tube design.
Application： Long-haul communication, interoffice communication.
Parameters
| Fiber count | Cable O.D(mm) | Cable weight(kg/km) | Minimum bending radius | Tension allowed(N) | Crush resistance | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2 12 | 9.0 | 83 | 10times O.D | 20times O.D | 1500 | 600 | 1000 | 300 |
| 14- 24 | 9.7 | 96 | ||||||
| 26- 48 | 10.9 | 115 | ||||||
