Specification
Characteristics
• All-dielectric self-supporting overhead installation.
• Protect the optical fiber cable from rodents by the solidness of FRP armor and the sharpness of fiberglass of it after being bitten by Rod-type FRP reinforced armor for rodent prevention.
Parameters
| Fiber count | Cable O.D(mm) | Cable weight(kg/km) | Minimum bending radius | Tension allowed(N) | Crush resistancce | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2- 36 | 15.2 | 247 | 15times O.D | 25times O.D | 3000 | 1500 | 1500 | 600 |
| 38- 72 | 15.8 | 266 | ||||||
| 74- 96 | 17.2 | 314 | ||||||
| 98- 120 | 18.3 | 352 | ||||||
| 122- 144 | 19.5 | 395 | ||||||
Pictures

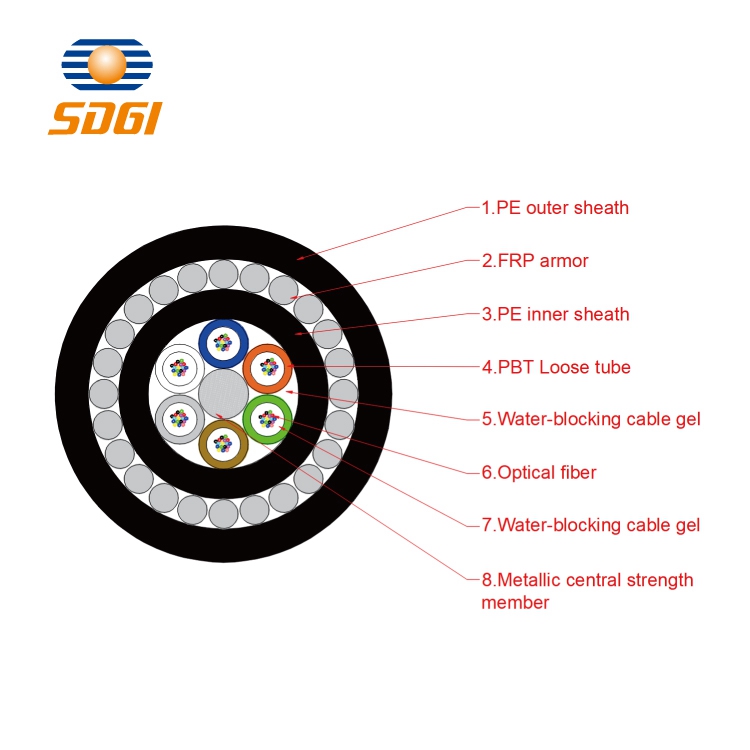

FRP-armored Self-supporting Optical Fiber Cable
