Specification
Description
Anti-rodent optical fiber cable with aluminum- PE laminated inner sheath with capsaicin added.
Characteristics
• Effective anti- rodent performance.
• Capsaicin added inner anti-rodent sheath.
• Outer PE sheath protects constructors from contact with the capsaicin.
Parameters
| Fiber count | Cable O.D(mm) | Cable weight(kg/km) | Minimum bending radius | Tension allowed(N) | Crush resistancce | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-24 | 10.7 | 97 | 10times O.D | 20times O.D | 1500 | 600 | 1000 | 300 |
| 26-36 | 11.0 | 110 | ||||||
| 38-60 | 11.1 | 110 | ||||||
| 62-72 | 11.6 | 126 | ||||||
| 74-96 | 12.8 | 144 | ||||||
| 98-120 | 13.9 | 168 | ||||||
| 122-144 | 15.3 | 201 | ||||||
Pictures

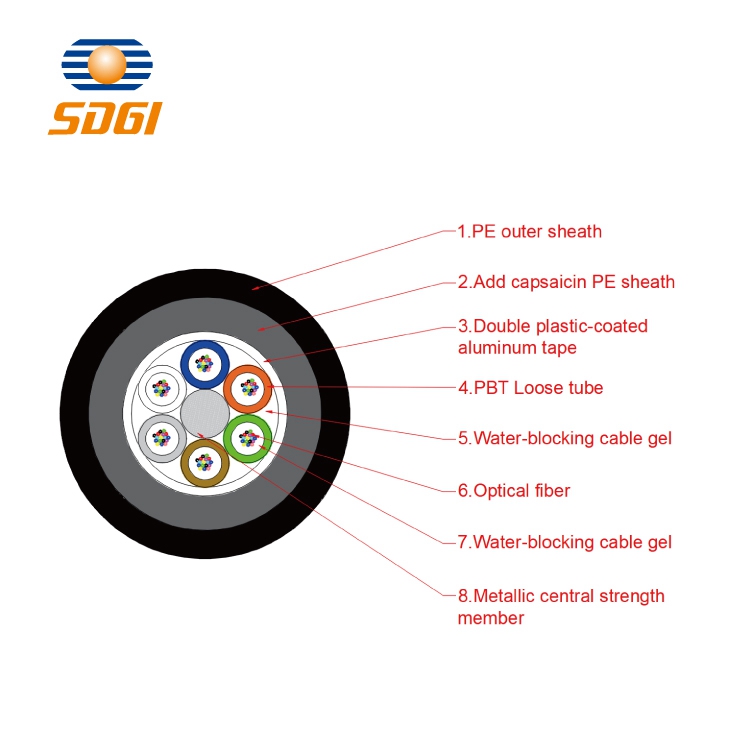

Anti-Rodent Optical Fiber Cable GYTA03(FS)
