Specification
Application： Applicable for construction of FTTX and re-construction of old areas. Applicable for extension of metropolitan area network.
Applicable for express-way and private network.
Applicable for new trunk line construction and online extension.
Characteristics
• Small overall diameter, lightweight, moderate hardness, suitable for air-blow installation.
• Non- metallic structure, no need for grounding.
• Effective use of duct resources with high fiber density.
• Convenient to splice and construct with easy branching.
• Convenient expansion reduces the initial investment of operators.
• Co-construction and sharing with the existing duct resources of silicon tubes that are available.
Parameters
| Cable type | Fiber count | Cable O.D（mm） | Cable weight (Kg/KM) | Tension allowed(N) | Crush resistance(N) | Bending radius | |||
| Long term | Short term | Long term | Short term | Static | Dynamic | ||||
| GYCFXTY | 2-12 | 3.5 | 11 | △ | ○ | 150 | 450 | 10D | 20D |
| GYCFXTY | 14- 24 | 4.1 | 14 | △ | ○ | 150 | 450 | 10D | 20D |
| GYCFTY | 2- 72 | 5.0 | 22 | △ | ○ | 150 | 450 | 10D | 20D |
| GYCFTY | 74- 96 | 5.9 | 33 | △ | ○ | 150 | 450 | 10D | 20D |
| GYCFTY | 98- 120 | 7.0 | 43 | △ | ○ | 150 | 450 | 10D | 20D |
| GYCFTY | 122- 144 | 7.7 | 52 | △ | ○ | 150 | 450 | 10D | 20D |
| GYCFTY | 146- 216 | 7.9 | 52 | △ | ○ | 150 | 450 | 10D | 20D |
| GYCFTY | 218-288 | 9.0 | 72 | △ | ○ | 150 | 450 | 10D | 20D |
Note: △ 0.15 times the cable weight, optical fiber strain ≤ 0.1% ; O 0.5 times the cable weight, optical fiber strain ≤ 0.3%
Pictures

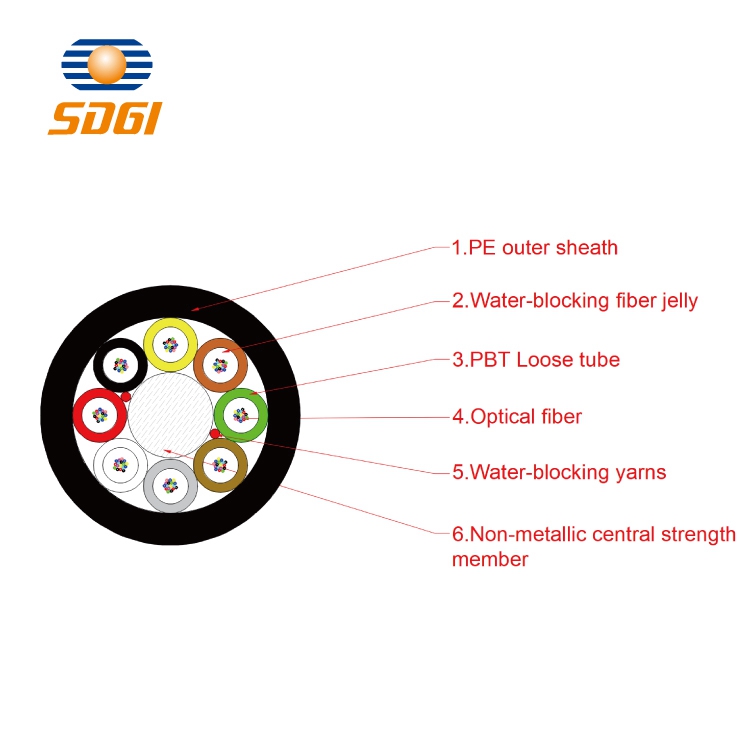

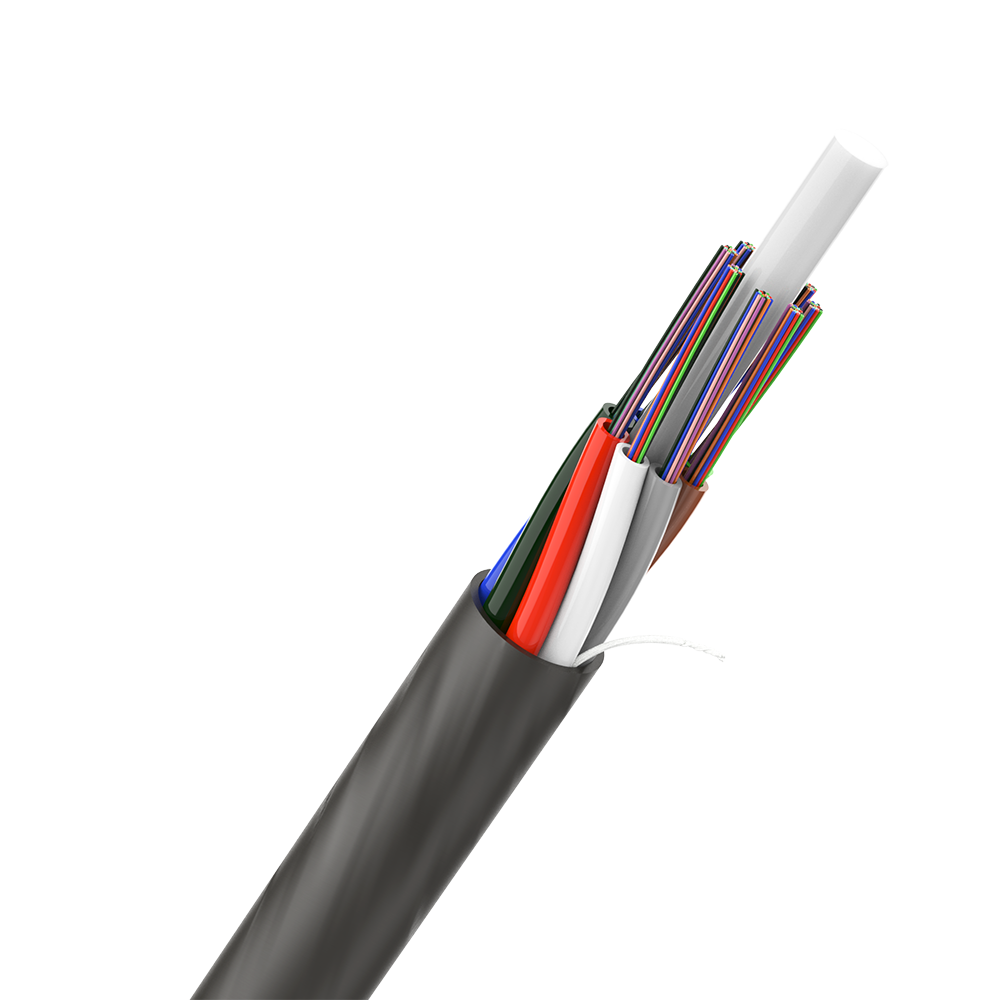

Air-blown Micro Optical Fiber Cable GYCFTY 2-288core
