Specification
SDGI’s ultra-fine series of single-mode optical fibers (200μm G.657A1) through a unique coating system design and curing process technology, while reducing the outer diameter of the optical fiber coating, the optical and transmission performance, mechanical and environmental performance meets or optimize It is compatible with conventional 245μm G.657A1 optical fiber technical specifications such as ITU-T G.657.A1, IEC60793-2-50 B6.a1, etc.
SDGI 200μm G.657A1 can provide the best transmission performance in the full range of 1260nm-1625nm, especially in the L-band long-wavelength window transmission, with excellent macro bending performance. The optical fiber also has low attenuation, low PMD, and excellent geometric dimensions. The unique coating process of the optical fiber not only provides excellent macro bending performance, but also ensures the reliability and durability of the optical fiber, and can provide the best performance even in the harshest environment.
SDGI 200μm G.657A1 non-dispersion shifted single-mode fiber has a small outer diameter and excellent macro-bending performance (minimum bending radius of 10mm), which can support a smaller cable bending radius and smaller optical fiber distribution box. It is especially suitable for large core count cables, Micro cables used in access networks, and indoor networks (FTTH).
Product Features
◆ Significant reduction in fiber outer diameter size and weight
◆ Excellent macro bending performance in the whole band
◆ Good compatibility
◆ Improved geometric characteristics
Performance Advantage
◆ Effectively reduce the size and weight of the optical cable, which is conducive to reducing the cost of laying and installing the optical cable and improving the utilization rate of the pipeline.
◆ It fully supports L-band applications, and you don’t need to be extra careful when reeling optical fibers.
◆ A more compact wiring device can be used in the FTTH system, which greatly saves space.
◆ It is fully compatible with the performance of conventional 245μm optical fiber and can be completely replaced.
◆ Low, splicing loss and high splicing efficiency.
Parameters
| Optical Characteristics(Uncabled fiber) | ||||
| Characteristics | Wavelength | Parameter value | Unit | |
| Attenuation | 1310nm | 0.34 | dB/km | |
| 1383nm（After hydrogen aging） | 0.34 | dB/km | ||
| 1460nm | 0.25 | dB/km | ||
| 1550nm | 0.21 | dB/km | ||
| 1625nm | 0.23 | dB/km | ||
| Attenuation vs Wavelength | 1285-1330nm in Reference to 1310nm | ≤0.03 | dB/km | |
| 1525-1575nm in Reference to 1550nm | ≤0.02 | dB/km | ||
| The Point Discontinuities | 1310nm | ≤0.05 | dB | |
| 1550nm | ≤0.05 | dB | ||
| Cut-off Wavelength(λcc) | -- | ≤1260 | nm | |
| Mode Field Diameter | 1310 | 8.3-9.1 | μm | |
| 1550 | 9.3-10.3 | μm | ||
| Chromatic Dispersion | 1285-1340 | ≤|3.4| | ps/√km | |
| 1550 | ≤18.0 | ps/√km | ||
| 1625 | ≤22.0 | ps/√km | ||
| Zero dispersion wavelength(λ0) | -- | 1300-1324 | nm | |
| Zero dispersion slope(S0) | -- | ≤0.090 | ps(nm2·km) | |
| Polarization Mode Dispersion(PMD) | Link value(M=20，Q=0.01％ ) | -- | ≤0.06 | ps/√km |
| The typical value | -- | 0.04 | ps/√km | |
| The maximum value of a single drum | -- | ≤0.1 | ps/√km | |
| Macro-bend Induced Attenuation | 1Turns Around, 10mm Radius | 1550 | ≤0.75 | dB |
| 10Turns Around, 15mm Radius | 1550 | ≤0.25 | dB | |
| 1Turns Around, 10mm Radius | 1625 | ≤1.5 | dB | |
| 10Turns Around, 15mm Radius | 1625 | ≤1.0 | dB | |
| Geometrical Characteristics | |||
| Characteristics | Parameter value | Unit | |
| Cladding diameter | 125.0±0.7 | μm | |
| Core/Cladding concentricity error | ≤0. 5 | μm | |
| Cladding non- circularity | ≤0.7 | ％ | |
| Fiber furl (radius) | ≥4 | m | |
| Coating diameter | 200±10.0 | μm | |
| Coating/Cladding concentricity error | ≤10.0 | μm | |
| Coating non- circularity | ≤6.0 | ％ | |
| mechanical Specifications | |||
| Characteristics | Parameter value | Unit | |
| Protest | ＞0.75 | Gpa | |
| 109 | kpsi | ||
| 1 | % | ||
| Coating Stripping Performance | Average value | 1.0-5.0 | N |
| Peak value | 1.3-8.9 | N | |
| Dynamic Fatigue Parameter | ≥20 | -- | |
| Environmental Characteristics | |||
| Characteristics | Parameter value(1310/1550nm) | Unit | |
| Temperature cycle | - 60℃ ~+85℃ | ≤0.05 | dB/km |
| Water immersion | 23℃，30days | ≤0.05 | dB/km |
| Dry heat | 85℃，30 days | ≤0.05 | dB/km |
| Damp heat | 85℃；85％ RH,30days | ≤0.05 | dB/km |
Pictures

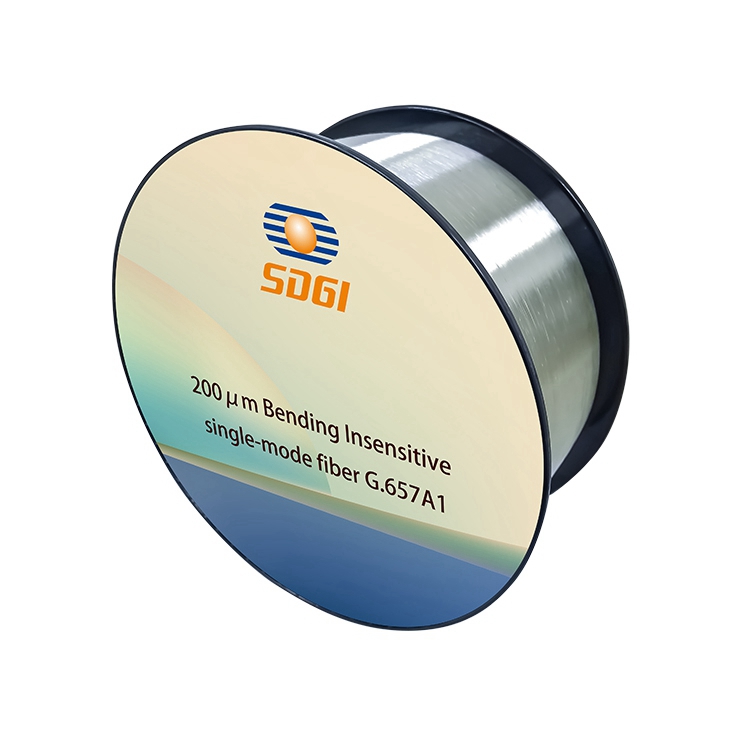

200μm Bending Insensitive Non-dispersion Shifted Single-mode Fiber G.657a1
