• All modular design.
• All operations in the front.
• Integrated fiber splicing and distribution.
• Suitable for 19" or 23" frames.
• Optic fiber distribution panel is suitable for fiber optic ribbon cable as well.
• All modular design.
• All operations in the front.
• Integrated fiber splicing and distribution.
• Suitable for 19" or 23" frames.
• Optic fiber distribution panel is suitable for fiber optic ribbon cable as well.
• SC/FC adaptor installed.
• 30-degree angle port ensures the bending radius of the patch cord and protects eyes from the laser.
• More than 2mm storage room for fibers and pigtails.
• Cover plate protecting the fiber from accidental injury.
• Splice module can be taken out, simple and convenient operation.
Parameters
| TYPE | Structure size | Capacity | |
| H×W×D (mm) | |||
| 19YT-12Ab | 43×482×280 (1U) | 12core | |
| 19YT-24Ab | 87×482×280(2U) | 24core | |
| 19YT-48Ab | 132×482×280(3U) | 48core | |
| 19YT-72Ab | 176×482×280(4U) | 72core | |
| 19YT-12Bb | 43×482×250 (1U) | 12core | |
| 19YT-24Bb | 87×482×250(2U) | 24core | |
| 19YT-48Bb | 132×482×250(3U) | 48core | |
| 19YT-72Bb | 176×482×250(4U) | 72core | |
Pictures

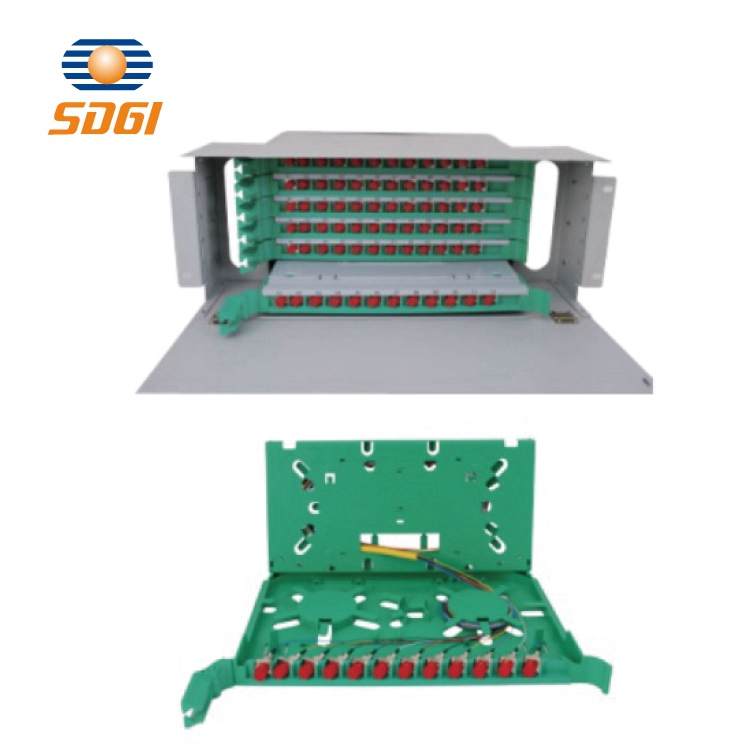

Optic Fiber Distribution Panel
