Specification

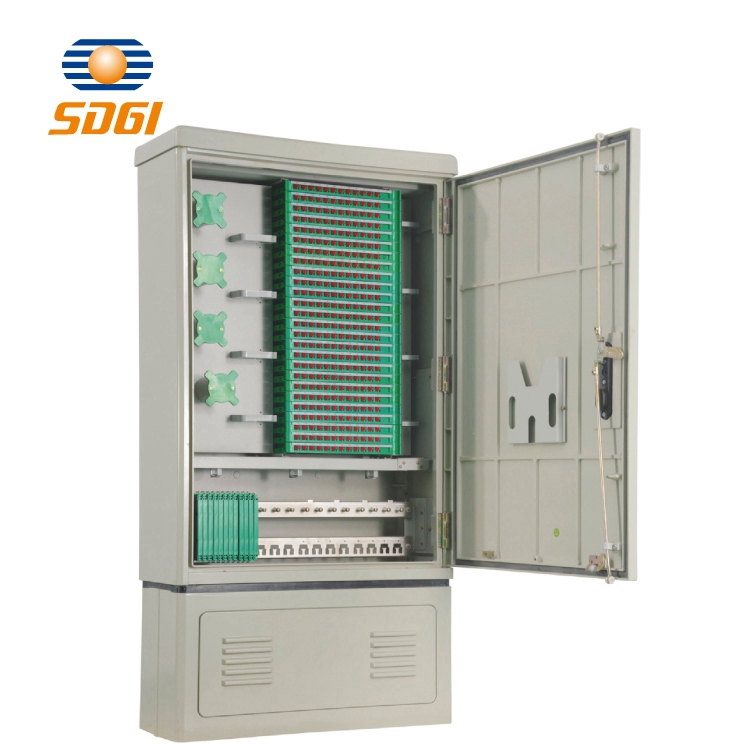

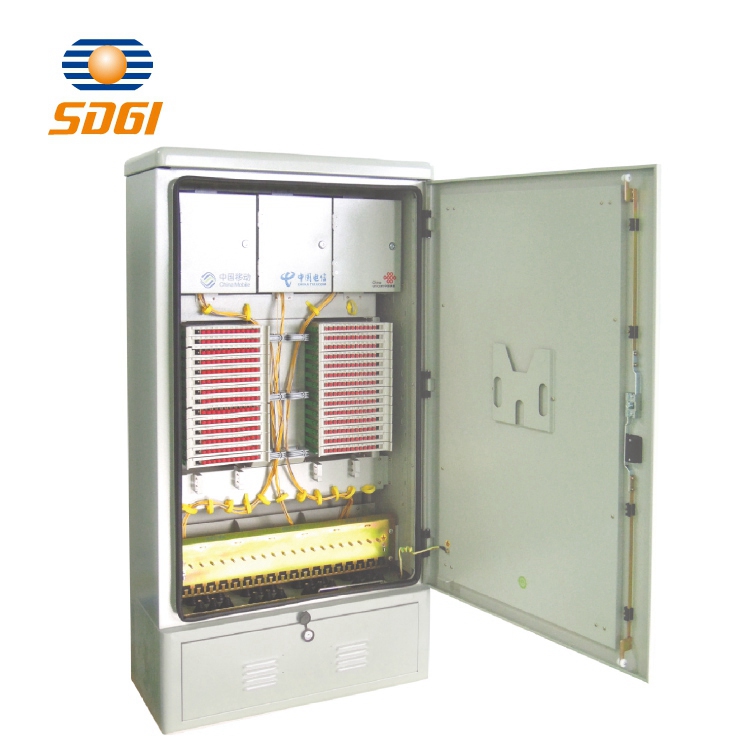

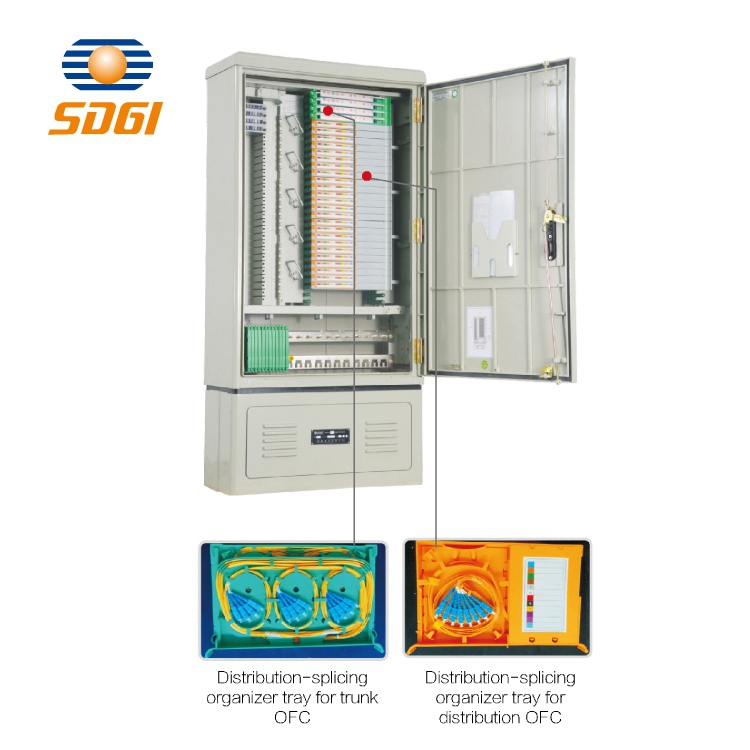

Common optical cable cross-connect cabinets can provide connection, distribution, and dispatch between main optical cables and distribution optical cables, easy and reliable to use and maintain.
Parameters
| TYPE | Size | Capacity (core) | Channel direct melting (core) | Installation method | Operation method | Number of pre-splitters installed (optional) | |||
| GXF576-YS（SMC box ） | H×W×D (mm) | ||||||||
| 700×520×280 | 96 | 144 | Wall hanging/hanging pole | Single side | 1-2 | ||||
| 1035×5500×308 | 144 | 144 | Floor/Wall/Overhead | Single side | 1-2 | ||||
| 1450×760×320 | 288 | 144 | Floor/Wall/Overhead | Single side | 1-2 | ||||
| 1460×760×540 | 576 | 288 | Floor/overhead | Double sided | 2-4 | ||||
| 1550×1460×360 | 576 | 288 | Floor | Single side | 2-4 | ||||
| 1552×1460×626 | 1152 | 576 | Floor | Double sided | 4-8 | ||||
| GXF576-YJ（Stainless steel box ） | 960×590×320 | 96 | 144 | Floor/Wall | Single side | 1-2 | |||
| 1080×590×320 | 144 | 144 | Floor/Wall/Overhead | Single side | 1-2 | ||||
| 1460×800×380 | 288 | 144 | Floor/overhead | Single side | 1-2 | ||||
| 1460×740×570 | 576 | 288 | Floor/overhead | Double sided | 2-4 | ||||
| 1450×1200×380 | 576 | 288 | Floor | Single side | 2-4 | ||||
| 1450×1200×580 | 1152 | 288 | Floor | Double sided | 4-8 | ||||
| GXF576-W-A | 1550×756×360 | 288 | 144 | Floor/overhead | Single side | 28 | |||
| 1550×756×360 | 576 | 288 | Floor/overhead | Double sided | 56 | ||||
| 1550×756×600 | 576 | 288 | Floor/overhead | Double sided | 56 | ||||
