Optical Fiber Quick Connector

Optical fiber quick connector are mainly used for fast termination, realizing the fast connection of two optical fibers. The product series have SC, FC and other specifications, which are suitable for FTTx, LAN optical fiber wiring and other scenarios.
Message Online Enquiry
Details

Specification

Optical fiber quick connector are mainly used for fast termination, realizing the fast connection of two optical fibers. The product series have SC, FC and other specifications, which are suitable for FTTx, LAN optical fiber wiring and other scenarios.

Parameters

ItemTest ConditionsInsertion lossReturn loss
Optical performanceInsertion loss1310nm≤0.3dB-
1550nm-≥45dB
Return loss1310nm≤0.5dB≥45dB
1550nmΔIL＜0.2dBΔRL＜5dB
InterchangeabilityAny objectΔIL＜0.2dBΔRL＜5dB
Mechanical performanceVibration5-50Hz, 1.5mm amplitudeΔIL＜0.2dBΔRL＜5dB
Tensile strength5kgΔIL＜0.2dBΔRL＜5dB
Environmental performanceHigh temperature+85℃，96HΔIL＜0.2dBΔRL＜5dB
Low temperature-40℃，96HΔIL＜0.2dBΔRL＜5dB
Temperature cycle-40℃-+85℃, 5 cycles ΔIL＜0.2dBΔRL＜5dB
Humidity+40℃，90%-95%，96HΔIL＜0.2dBΔRL＜5dB

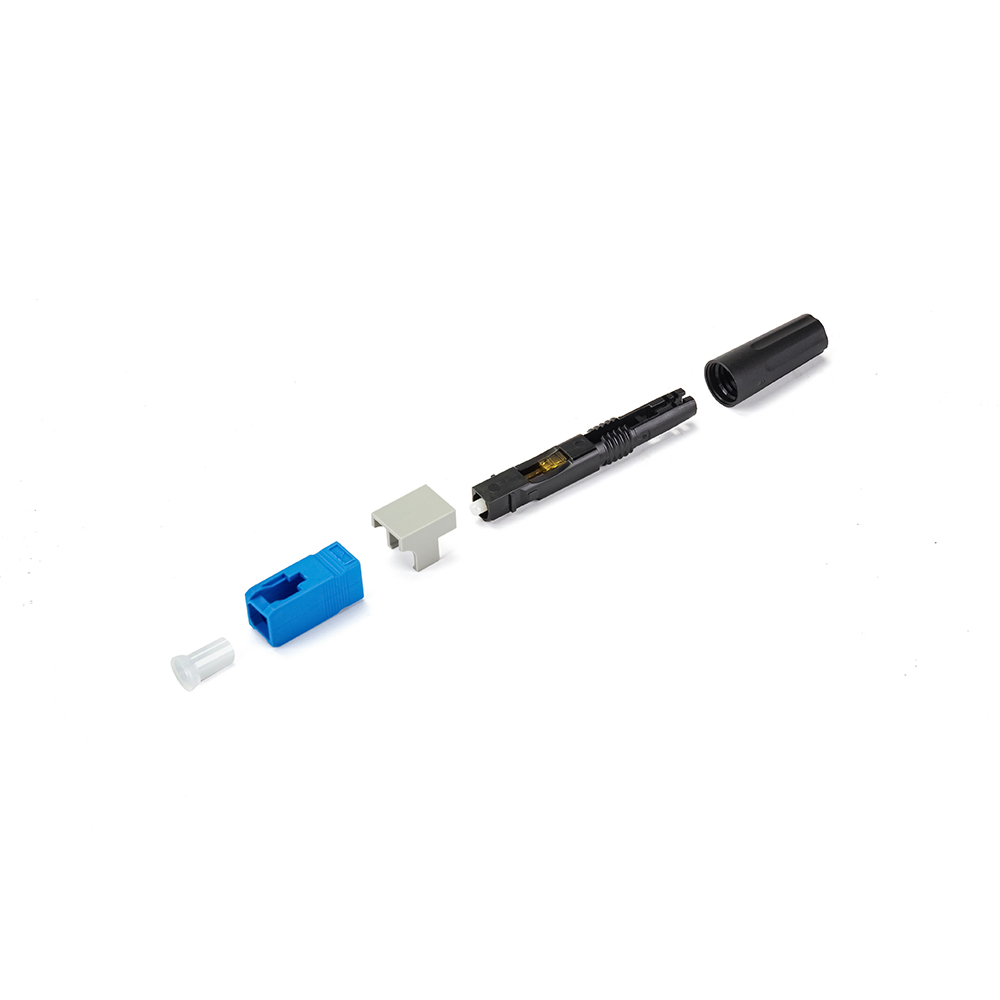

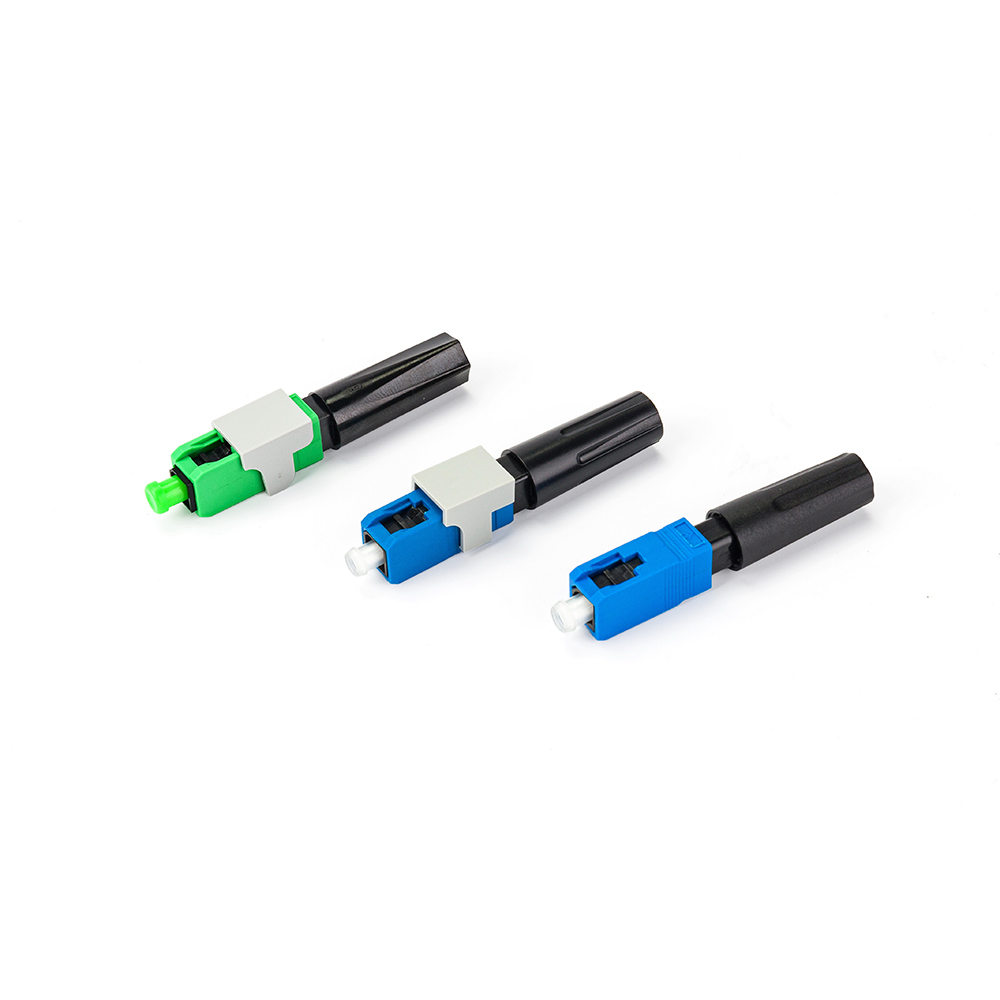

Pictures
