Pre-terminated FTTH Drop Cable

Pre-terminated FTTH Drop Cable is composed of drop cable and optical fiber connector. According to the production process of optical fiber movable connector, the connector is pre-installed on the drop cable in the factory. The optical performance advantage is same with the factory preset optical patch cord.
留言 在线咨询
Details

Specification

Pre-terminated FTTH Drop Cable is composed of drop cable and optical fiber connector. According to the production process of optical fiber movable connector, the connector is pre-installed on the drop cable in the factory. The optical performance advantage is same with the factory preset optical patch cord.

Parameters

ItemTest ConditionsInsertion lossReturn loss
Optical performanceInsertion loss1310nm(SM)≤0.3dB-
1550nm(SM)-≥45dB
Return loss1310nm(SM)≤0.5dB≥45dB
1550nm(SM)ΔIL<0.2dBΔRL<5dB
InterchangeabilityAny objectΔIL<0.2dBΔRL<5dB
Mechanical behaviorVibration5-50Hz, 1.5mm amplitudeΔIL<0.2dBΔRL<5dB
Tensile strength6.8kgΔIL<0.2dBΔRL<5dB
Environmental performanceHigh temperature+85℃,96HΔIL<0.2dBΔRL<5dB
Low temperature-40℃,96HΔIL<0.2dBΔRL<5dB
Temperature cycle-40℃-+85℃, 5 cycles ΔIL<0.2dBΔRL<5dB
Humidity+40℃,90%-95%,96HΔIL<0.2dBΔRL<5dB

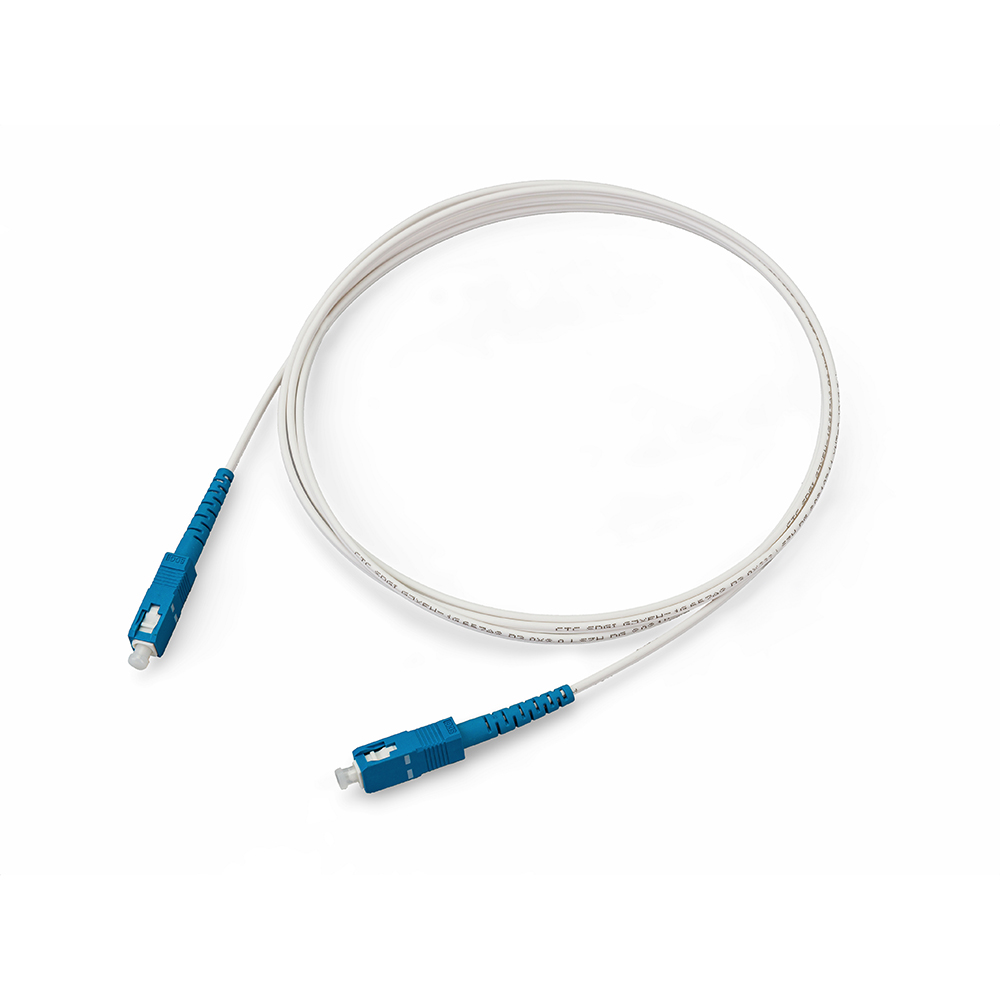

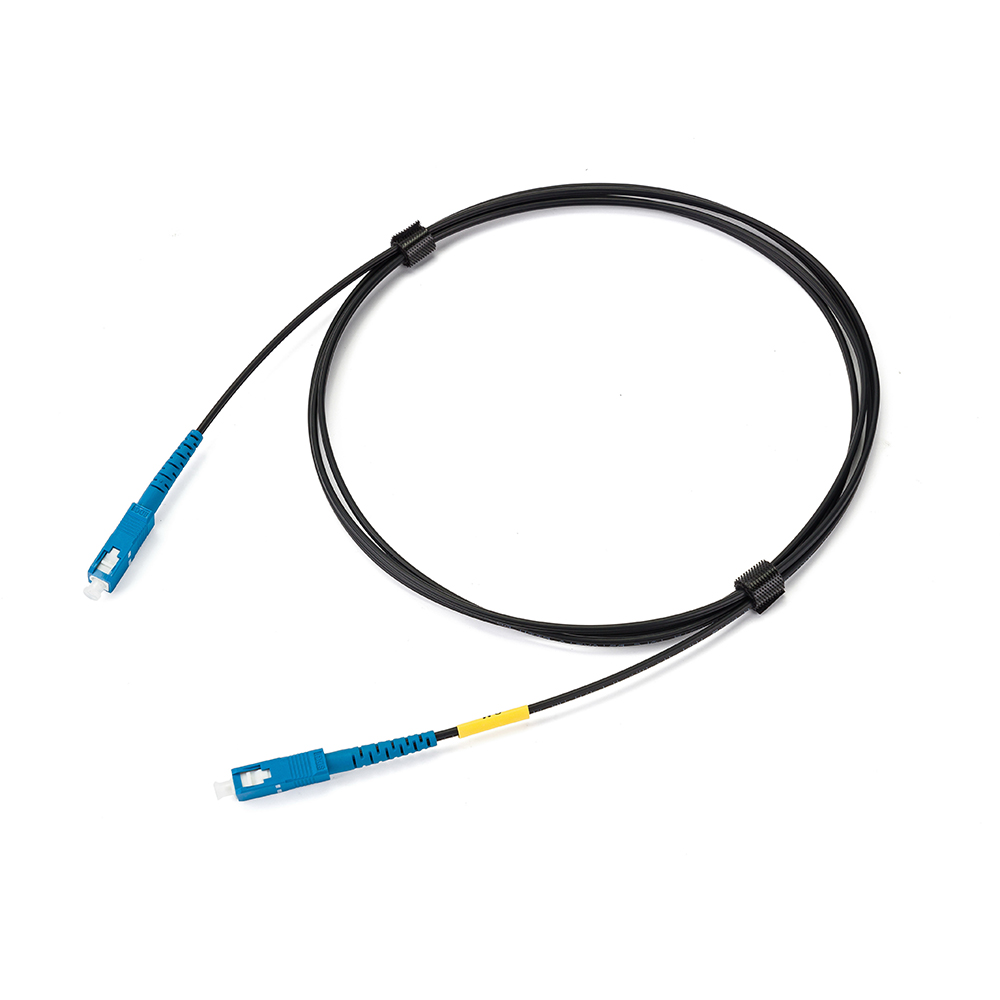

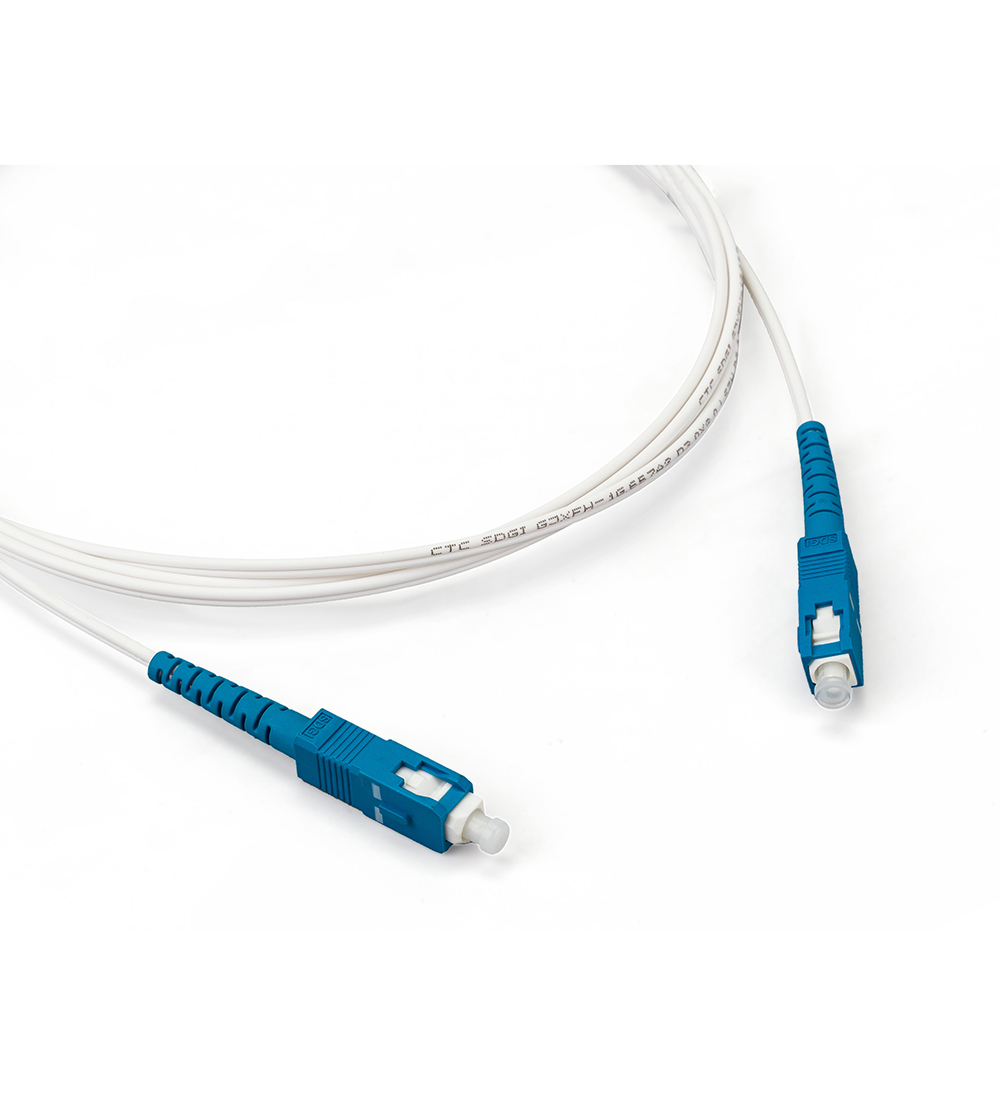

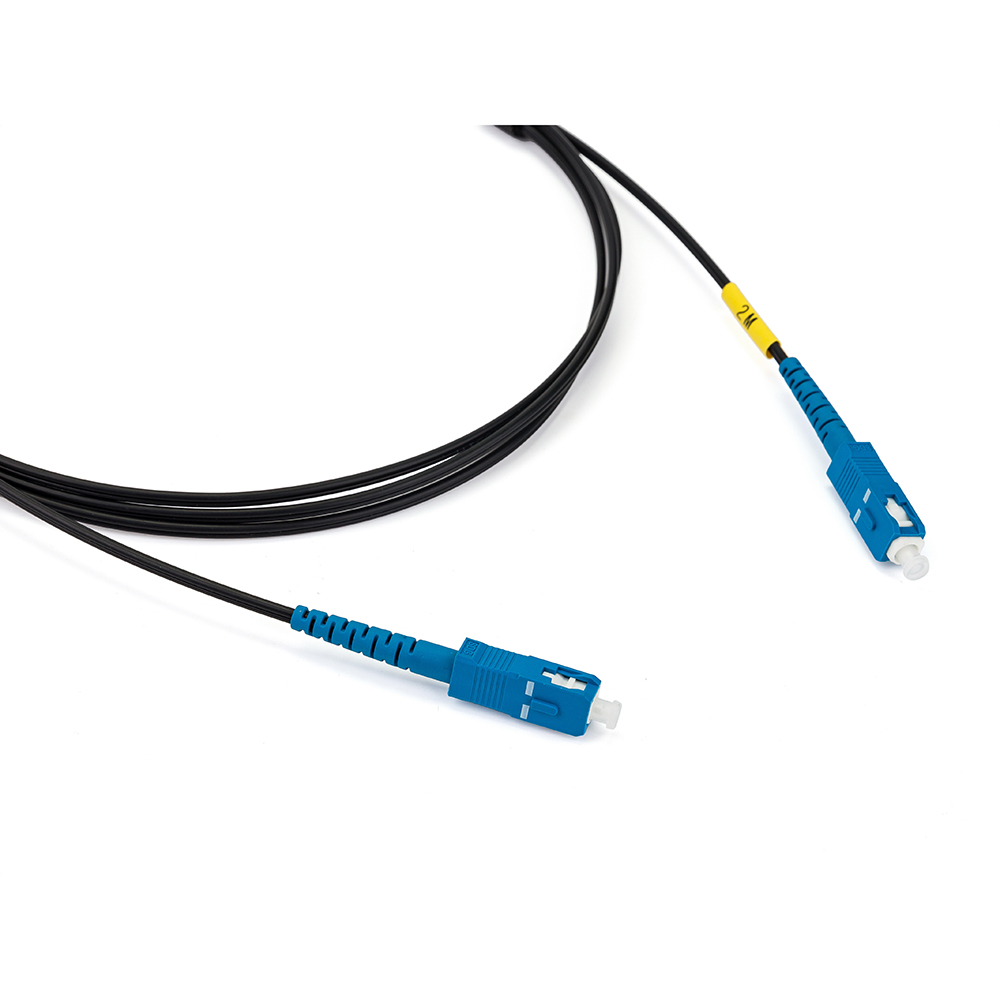

Pictures
