Specification

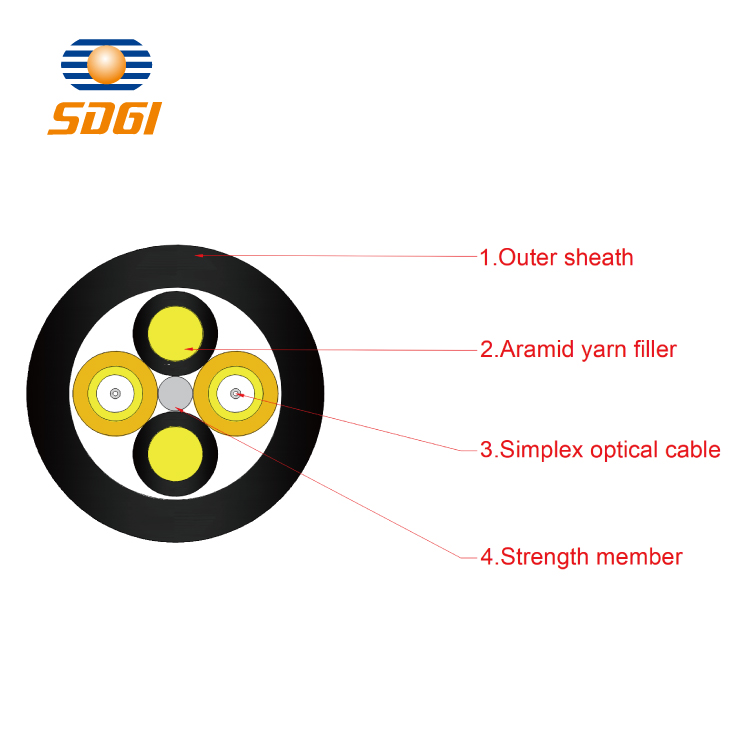

Remote Radio Unit(RRU cable) Optical Fiber Cable takes the 2.0 simplex cable as the basic unit stranded with the filling cord, and the jacket is made of low smoke zero halogen flame-retardant polyolefin (LSZH).
Product application
• Mainly used for the horizontal and vertical wiring of the wireless base station, suitable for wiring from baseband unit (BBU) to remote radio unit (RRU)
• Fiber to the antenna
Parameters
| Fiber count | Strength member | Cable diameter (mm) | Cable weight (kg/km) | Minimum bending radius (mm) | Tensile load(N) | Crush load(N/100mm) | Temperature range（℃） | |||
| static | dynamic | Short term | Long term | Short term | Long term | |||||
| 2 | high modulus aramid yarn | 7.0±0.1 | 40.6 | 70 | 140 | 400 | 200 | 2200 | 1100 | - 40℃ - +70℃ |
| 4 | high modulus aramid yarn | 7.0±0.1 | 44.2 | 70 | 140 | 400 | 200 | 2200 | 1100 | - 40℃ - +70℃ |
Pictures
Remote Radio Unit RRU Optical Fiber Cable
