Specification

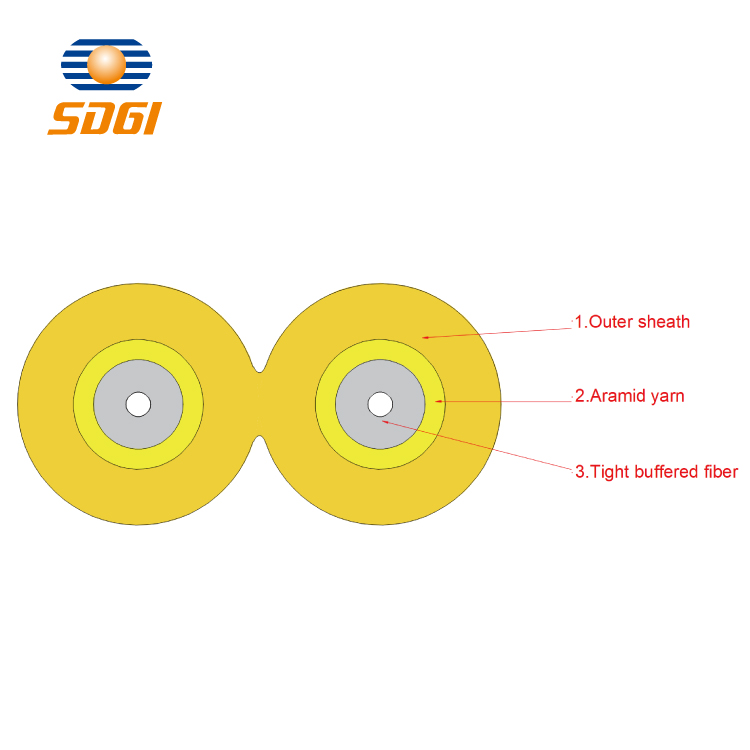

With two tight-buffered fibers as the basic unit, high modulus aramid yarn as the strength member, and the jacket is made of polyvinyl chloride (PVC) or low smoke zero halogen flame- retardant polyolefin（LSZH).
Duplex optical fiber cable product application
• Duplex fiber patch cord and pigtail
• Interconnection of instrument and communication equipment
Parameters
| Fiber count | Strength member | Cable diameter (mm) | Cable weight (kg/km) | Minimum bending radius (mm) | Tensile load (N) | Crush load (N/100mm) | Temperature range(C) | |||
| static | dynamic | Short term | Long term | Short term | Long term | |||||
| 2 | high modulus aramid yarn | 1.6±0.1 | 4.4 | 30 | 60 | 120 | 60 | 500 | 100 | - 20℃ - +60℃ |
| 2 | high modulus aramid yarn | 1.8±0.1 | 5.9 | 30 | 60 | 150 | 80 | 500 | 100 | - 20℃ - +60℃ |
| 2 | high modulus aramid yarn | 2.0±0.1 | 7.8 | 30 | 60 | 150 | 80 | 500 | 100 | - 20℃ - +60℃ |
| 2 | high modulus aramid yarn | 2.8±0.1 | 12.1 | 30 | 60 | 250 | 120 | 500 | 100 | - 20℃ - +60℃ |
| 2 | high modulus aramid yarn | 3.0±0.1 | 13.4 | 30 | 60 | 250 | 120 | 500 | 100 | - 20℃ - +60℃ |
Pictures

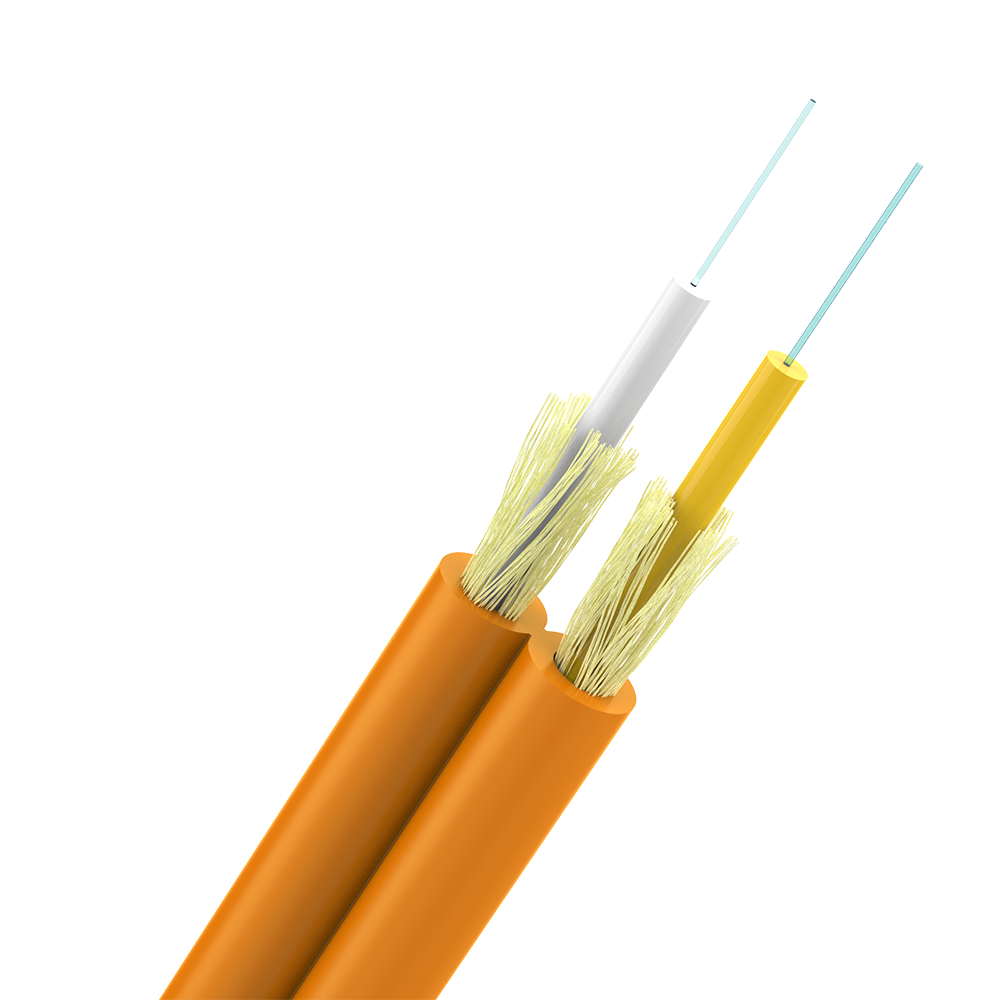

Duplex Optical fiber Cable
