Specification
Helical Suspension Set is mainly used for hanging and supporting optical fiber cable on straight pole and tower, to transmit axial load and divert axial pressure which provides good protection for optical cable, to avoid emergencies happen such as too small bending radius or stress concentration. The grip strength of the Suspension Set is larger than the 15% -20% rated tensile strength of the cable, which is fatigue resistance and can serve as vibration reduction.
Parameters
| OPGW Fitting parameters | |||
| TYPE | Available Dia. Of Cable | RTS of cable （kN） | |
| Min（mm） | Max（mm） | ||
| OCL 120/1360 | 13 | 13.6 | 120 |
| OCL 120/1430 | 13.7 | 14.3 | 120 |
| OCL 120/500 | 14.4 | 15 | 120 |
| OCL 120/570 | 15.1 | 15.7 | 120 |
| OCL 120/640 | 15.8 | 16.4 | 120 |
| OCL 140/500 | 14.4 | 15 | 140 |
| OCL 140/570 | 15.1 | 15.7 | 140 |
| OCL 140/640 | 15.8 | 16.4 | 140 |
| OCL 140/710 | 16.5 | 17.1 | 140 |
| OCL 140/780 | 17.2 | 17.8 | 140 |
| OCL 140/850 | 17.9 | 18.5 | 140 |
| ADSS Fitting parameters | |||
| TYPE | Available Dia. Of Cable | RTS of cable （kN） | |
| Min（mm） | Max（mm） | ||
| ACL 300/0940 | 8.8 | 9.4 | 200~300 |
| ACL 300/1010 | 9.5 | 10.1 | 200~300 |
| ACL 300/1080 | 10.2 | 10.8 | 200~300 |
| ACL 300/1150 | 10.9 | 11.5 | 200~300 |
| ACL 300/1220 | 11.6 | 12.2 | 200~300 |
| ACL 300/1290 | 12.3 | 12.9 | 200~300 |
| ACL 300/1360 | 13 | 13.6 | 200~300 |
| ACL 400/1010 | 9.5 | 10.1 | 300~400 |
| ACL 400/1080 | 10.2 | 10.8 | 300~400 |
| ACL 400/1150 | 10.9 | 11.5 | 300~400 |
| ACL 400/1220 | 11.6 | 12.2 | 300~400 |
Pictures

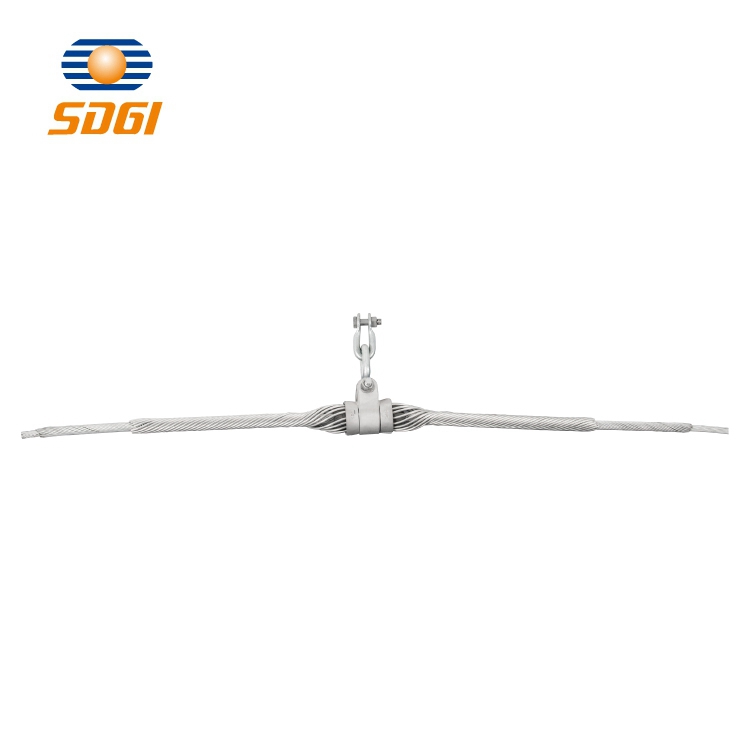

Helical Suspension Set
