SDGI 100G QSFP28 Single Lambda Optical Transceivers

SDGI 100G QSFP28 Single Lambda Optical Transceivers are mainly applied in 100G Ethernet. This series of products comply with IEEE 802.3bm, IEEE 802.3cd and QSFP28 MSA standards and will also become an alternative to traditional four-channel 100G optical modules.
留言 在线咨询
Details

Specification

SDGI 100G QSFP28 Single Lambda Optical Transceivers are mainly applied in 100G Ethernet. This series of products comply with IEEE 802.3bm, IEEE 802.3cd and QSFP28 MSA standards and will also become an alternative to traditional four-channel 100G optical modules.

SFGI 100G QSFP28 optical transceivers modules include SR4, AOC, AOC breakout, CWDM4, eCWDM4, PSM4, PSM4 Pigtail, LR4 Ethernet and ER4 Lite. The series of products adopt LC or MPO optical ports and are compatible with IEEE802.3bm, SFF-8636 and other standards. They have the characteristics of low power consumption, high density and the like, and is beneficial to increasing the capacity and port density of the data center, and reducing the power consumption. It is mainly applied in 100G Data Center Internal Network, Data Center Interconnection, Metropolitan Area Network and other environments.

SDGI 100G products, including SR4 CPRI, eCWDM4 ET, LR4 Ethernet and ER4 Lite can be used for 5G front-haul, mid-haul and back-haul applications. They adopt LC or MPO optical ports and are compatible with IEEE802.3bm, SFF-8636 and other standards. They have the characteristics of low power consumption, high density and reliable quality assurance.

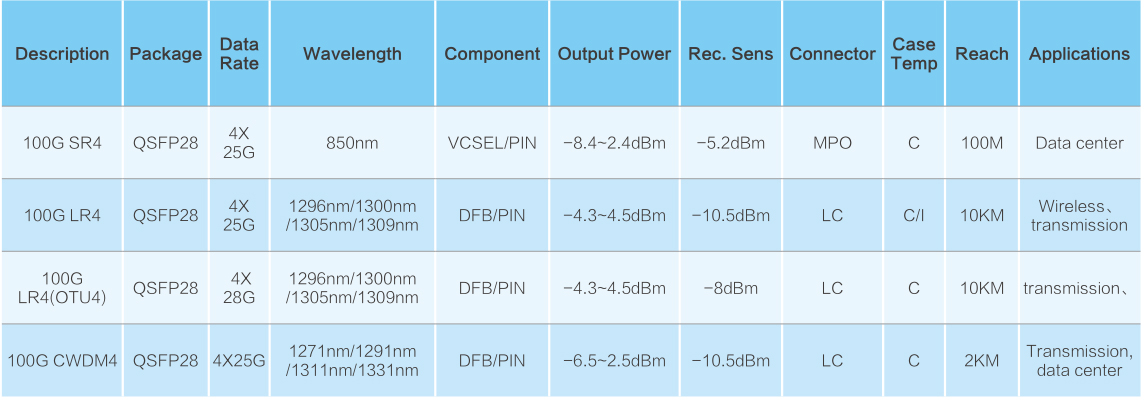

Parameters



Pictures

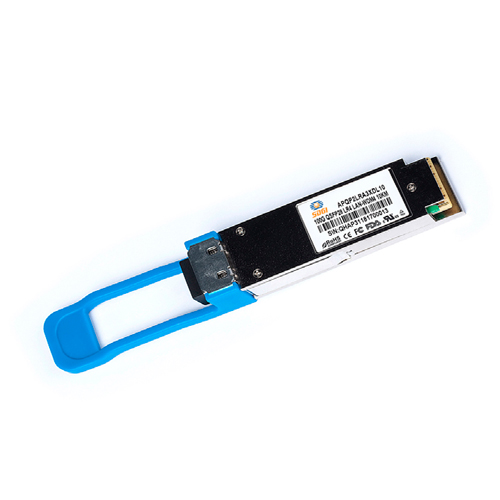

100G QSFP28 LR4


100G QSFP28 LR4

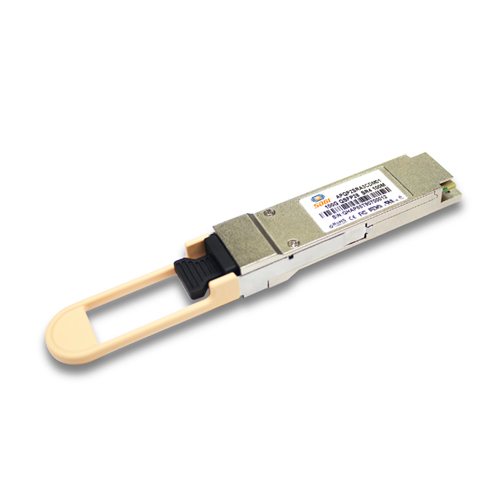

100G QSFP28 SR4


100G QSFP28 SR4
