RRU Cable Patch Cord For Base Station

This product solves the problem that the tensile strength of most products in the market is not enough and the fiber is broken in the process of use, which can facilitate FTTH construction, and increase efficiency and reduce maintenance times.
留言 在线咨询
Details

Specification

This product solves the problem that the tensile strength of most products in the market is not enough and the fiber is broken in the process of use, which can facilitate FTTH construction, and increase efficiency and reduce maintenance times.

Parameters

Type: FC, SC, FE etc.

Insertion Loss: < 0.3dB

Return Loss: ≥ 50dB(SM)

PC) ≥ 60dB(SM APC)

ItemTest ConditionsInsertion lossReturn loss
Optical performanceInsertion loss1310nm(SM);850nm(MM)≤0.3dB-
1550nm(SM);1300nm(MM)-≥45dB(SM)
≥35dB(MM)
Return loss1310nm(SM);850nm(MM)≤0.5dB≥45dB(SM)
≥35dB(MM)
1550nm(SM);1300nm(MM)ΔIL<0.2dBΔRL<5dB
InterchangeabilityAny objectΔIL<0.2dBΔRL<5dB
Mechanical behaviorVibration5-50Hz, 1.5mm amplitudeΔIL<0.2dBΔRL<5dB
Tensile strength1kg/5kg/6.8kgΔIL<0.2dBΔRL<5dB
Environmental performanceHigh temperature+85℃,96HΔIL<0.2dBΔRL<5dB
Low temperature-40℃,96HΔIL<0.2dBΔRL<5dB
Temperature cycle-40℃-+85℃, 5 cycles ΔIL<0.2dBΔRL<5dB
Humidity+40℃,90%-95%,96HΔIL<0.2dBΔRL<5dB

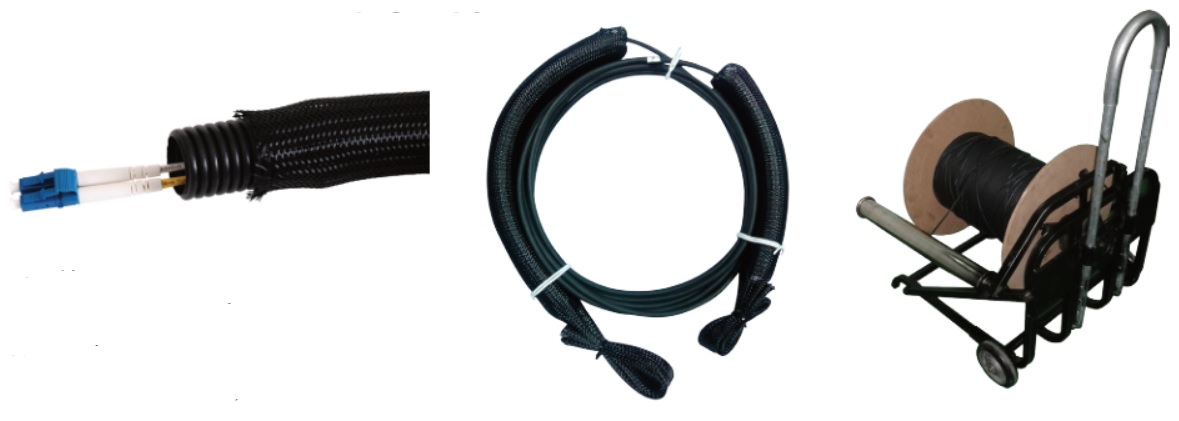

Pictures
